MONITOR MODULE SIGNALING DEVICE

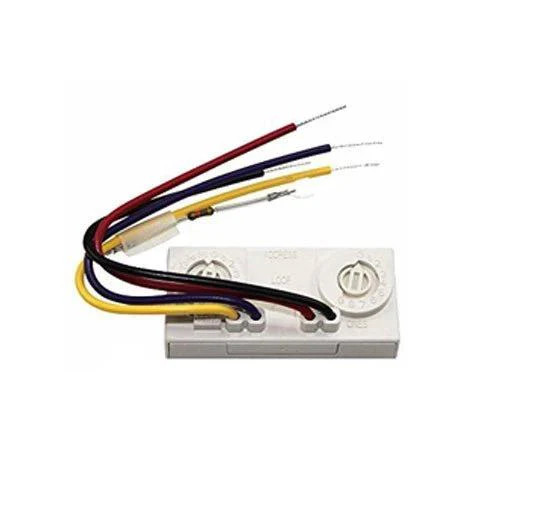

Fire-Lite MMF-301 Addressable Mini-Monitor Module for Class B, Style B Circuit

MMF-301 is a miniature monitor module a mere 1.3" (3.302 cm) H x 2.75" (6.985 cm) W x 0.65" (1.651 cm) D that supervises a Style B (Class B) circuit of dry-contact input devices.

Its compact design allows the MMF-301 to be mounted in a single-gang box behind the device it monitors.

Features

• 15-32 VDC
• Supervises a Style B (Class B) circuit of dry-contact input devices
• Compact design allows mounting in a single-gang box behind the device it monitors
• Supervises IDC wiring and connection of external power source.
• High noise (EMF/RFI) immunity.
• SEMS screws with clamping plates for ease of wiring.
• Direct-dial entry entry of address: 01 – 159 on MS-9600 series panels, 01 – 99 on other compatible systems.
• LED flashes during normal operation.
• LED latches ste
