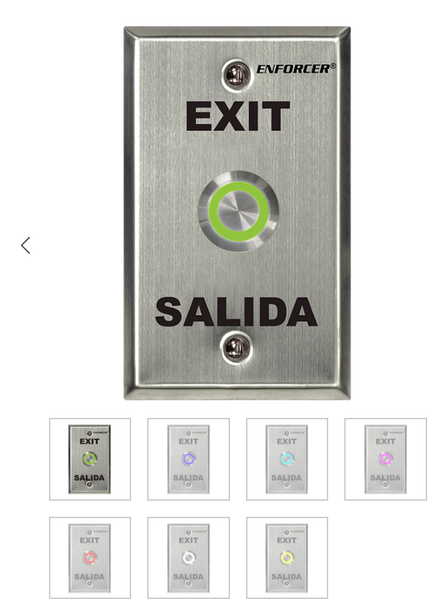

Multicolor Illuminated RTE Plate – Single-gang

The ENFORCER Multicolor Illuminated Vandal Resistant Request-To-Exit Plates use a stainless steel vandal resistant button, illuminated by a circular perimeter LED. The LED color is easily selectable during installation to not only red, green, or blue, but also yellow, cyan, magenta, or white.

• ETL, Conforms to UL Std. 294
• Illuminated vandal-resistant ø1″ (ø25mm) pushbutton
• 12VDC LED – supports 24VDC with included 1kΩ, 1/4W resistor
• Field-selectable LED color: red, green, blue, magenta, yellow, cyan, or white
• NO/NC (DPST) switch
• Switch contact rating: 20A@24VAC / 1A@24VDC
• Switch is Weatherproof IP65 rated for outdoor use
• “EXIT” and “SALIDA” silk-screened on plate
