Description

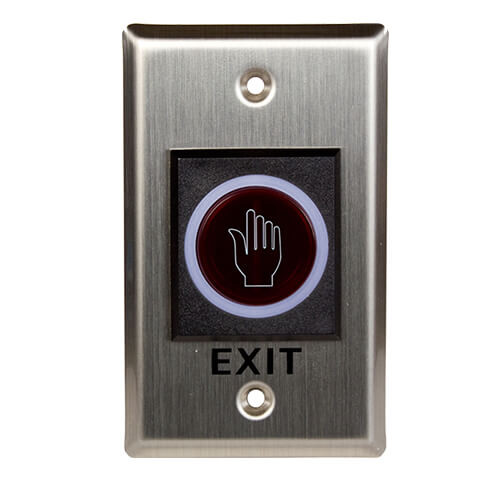

Non-touch Exit Switch for Access Control System
eatures:
* Door release buttons
* No touch / Touch free Exit Sensor (Diffused Detection)
* Optical / Infrared Technology
* IP-55 Ingress Protection / SUS 304 Stainless steel Plate
* User friendly (Healthy protection)
* Free from contagious diseases spread
* Detection range: 0.1 ~ 10 cm
* Application: Gate/Door/Exit/Automation control
* High capacity of relay dry contact (3A/AC120V,DC30V)
* Normally open/Normally close/Common relay output
* Twin led indicators for sensor standby or approached
* Sensor Standby: BLUE LED ON
* Visitors whom approached to the sensor in 10 cm : RED LED ON
Specifications:
| Contact Rating | 3A/AC120V, DC30V |
| Input Volt. | DC 12V |
| Management | Simple and clear for operation. |
| Operation Temperature Range | 20ºC~55ºC |
| Life | 100.000 Times |
| Mounting | Durable stainless steel plate |
| Dimension | K1-1: 115x70x29(mm) /K1-1D: 86x86x29(mm) |
| Weight | 85g |
