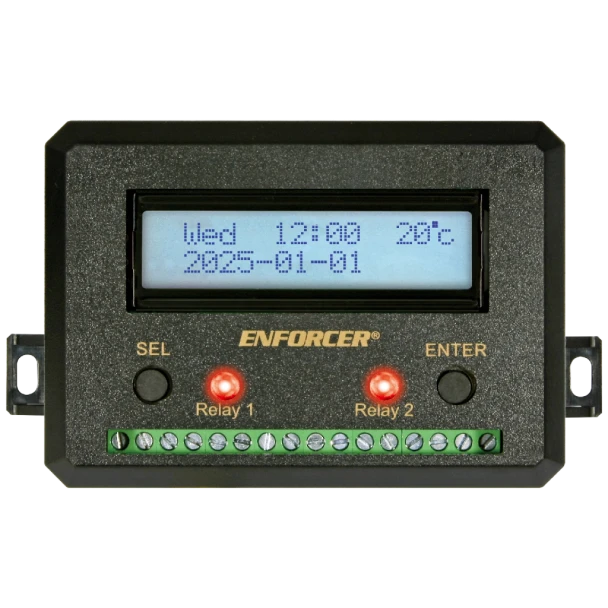

Programmable Annual Timer

The ENFORCER SA-027HQ Annual Timer can be programmed to operate 2 Form C relays 24 hours a day, for an entire year for various applications including security, access control, lighting, and environmental control. Each relay can be programmed for up to 99 events with each event on a weekly, daily, or hourly schedule. Block programming allows events to be repeated. Twenty programmable holiday events disable the timer on the same date yearly.

• Wide operating voltage range – 10~48 VDC, 12~24 VAC
• Two N.O. or N.C. Form C relays, 10A@14VDC, with one egress input per relay
• 99 Programmable events per relay (total, 198) set weekly, daily, or hourly, over a year
• 20 Programmable holiday events – each holiday event from 1~31 days in duration
• Block programming allows events to be repeated
• EEPROM Memory for safe data protection in case of power failure
• No clock battery to replace – built-in super capacitor saves date/time 7-10 days after power loss
• Built-in leap year compensation, auto US/EU switch to Daylight Savings Time, or manual DST
• Smart backup battery charger for an external backup battery (not included) extends battery life
• Easy troubleshooting status checks – relay test, input voltage, backup battery voltage/charge
• Passcode protection can be turned ON or OFF
• First-person-in (first-man-in, FM) function interrupts the normal operation of the annual timer
• Event outputs can be programmed to disable, ON, OFF, shunt, or momentary (1~99 seconds)
• Tandem mode allows both relays to operate simultaneously
