Description

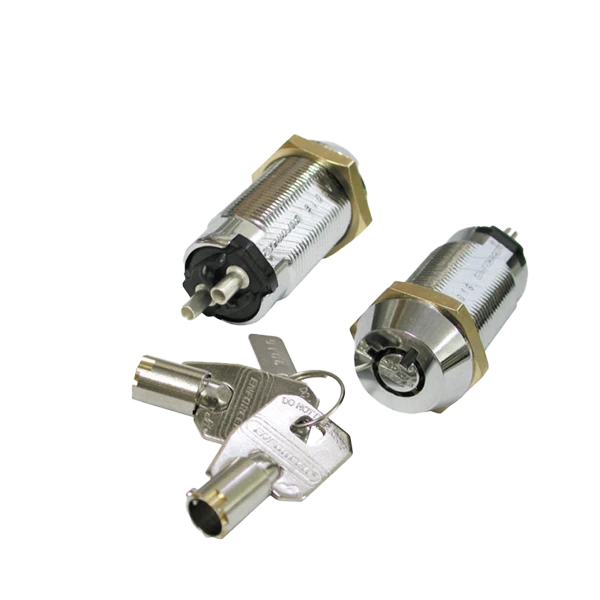

- ONE LOCK INCLUDED
- Momentary ON/shunt OFF 2 terminals, SPST
- Maintained OFF, springs back from ON, key removable from OFF only
- Commonly used for momentary arm/disarm alarm inputs or other applications requiring high-security momentary on
- 12VDC, 2 Amps max.
-
Ideal for use in residential, commercial, industrial, and vehicle burglar alarm systems, as well as computer systems, data processing equipment, and other types of equipment or machinery that requires operation by authorized personnel only. PatentedSee-Saw" contacts assure a reliable, automatically self-adjusted contact even after the contacts are worn out from prolonged use, or otherwise misaligned by vibration such as uneven road surfaces. Uses Spare Key 82-14197
- Shunt ON/OFF 2 terminals, SPST
- Maintained ON-OFF, key removable from both ON and OFF positions
- Commonly used as ON/OFF switch to arm/disarm alarm or shunt zone
- 12VDC, 2 Amps max
